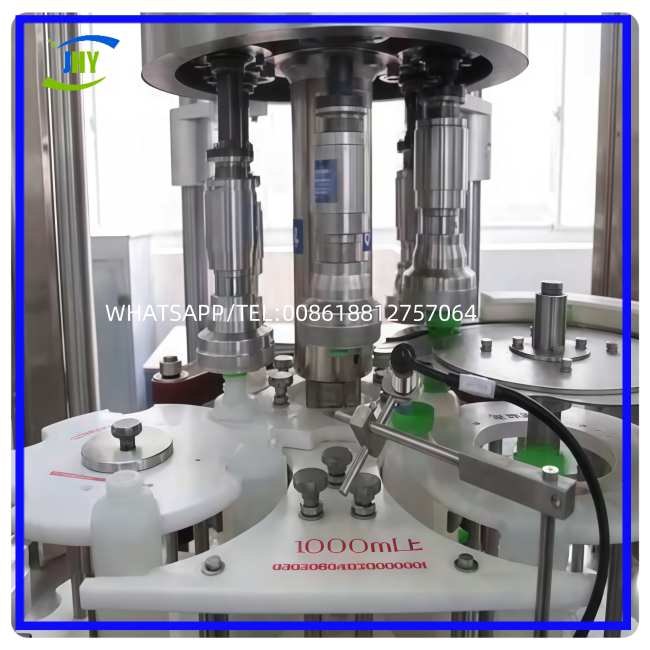

Fully automatic servo liquid filling machine
This series of fully automatic servo liquid filling machine is designed for the high-standard production requirements of the food and laundry industries. It's suitable for the precise filling of viscous or fluid liquids such as sauces, cooking oils, detergents, disinfectants, and cosmetic bases. Its core system utilizes a high-performance plunger pump filling system, coupled with mirror-polished stainless steel flow channels and food-grade sealing components, ensuring zero residue in the filling chamber after filling. The entire line can be disassembled and cleaned in less than 5 minutes, meeting GMP and FDA hygiene certification requirements.
Advanced Servo-Driven Filling Technology
Our servo liquid filling machines represent the pinnacle of bottling accuracy. Unlike traditional pneumatic cylinders, our systems use high-performance servo motors to control each piston individually, providing unparalleled precision and flexibility for modern production lines.
Precision: Guaranteed accuracy of ±0.5%, minimizing product waste.
Versatility: Ideal for various viscosities—from thin water to thick creams and shampoos.
Capacity: Scalable configurations from 2 to 12 filling heads.
We can choose the appropriate machine model according to the bottle shape and diameter provided by the customer.
| Filling head | 2 4 6 8 12 16 20 |
| Filling way | Piston Pump |
| Filling precision | ≤± 0.5-1% |
| Air consumption | 0.6-0.8MPa |
Why Choose JHY Servo Filling Machines?
Smart Volume Adjustment: No more manual hand-cranking. Simply enter the desired filling volume (e.g., 50ml or 500ml) on the Siemens HMI touch screen, and the servo motors will automatically adjust in seconds.
Multi-Stage Filling Speeds: The servo system allows for variable filling speeds within a single cycle—fast at the start and slow at the end—to eliminate foaming and splashing.
Easy Clean & Maintenance: Features a "Quick-Clean" design with food-grade SUS316L stainless steel contact parts, ensuring compliance with GMP and FDA standards.
Long-Term Reliability: Servo motors reduce mechanical wear compared to pneumatic systems, extending the machine's lifespan to 10-15 years of 24/7 operation.
Use anti-drip design, better and more convenient
Full-Process Service Support
Quality Control:
Pre-shipment undergoes a 72-hour continuous pressure test and three simulated filling tests;
Material safety certification (SGS report) issued by a third-party organization is provided.
Worry-Free After-Sales Service:
Remote Guidance: Equipped with AR visual installation tutorials and a fault self-diagnosis system;
48-hour engineer emergency response.
Extended Solutions:
Provide integrated production line design for bottle washing, filling, capping, labeling, and palletizing;
Supply of food-grade emulsifiers, detergent-specific surfactants, and other raw materials.
Delivery and Packaging Standards: The equipment is protected by a shock-resistant wooden crate, PE moisture-proof film, and an angle steel fixing frame.
Includes a spare parts kit (including a seal kit, operating manual, and test certificate).
Industry Application Examples
Application Area Filling Product Accuracy/Efficiency
Food: Ketchup, oyster sauce, sesame oil 200 bottles/minute (500ml)
Washing: Laundry detergent, hand soap, oil cleaner ±1g/5L barrel
Household chemicals: Shampoo, skin lotion, disinfectant spray Non-drip back-suction valve design
