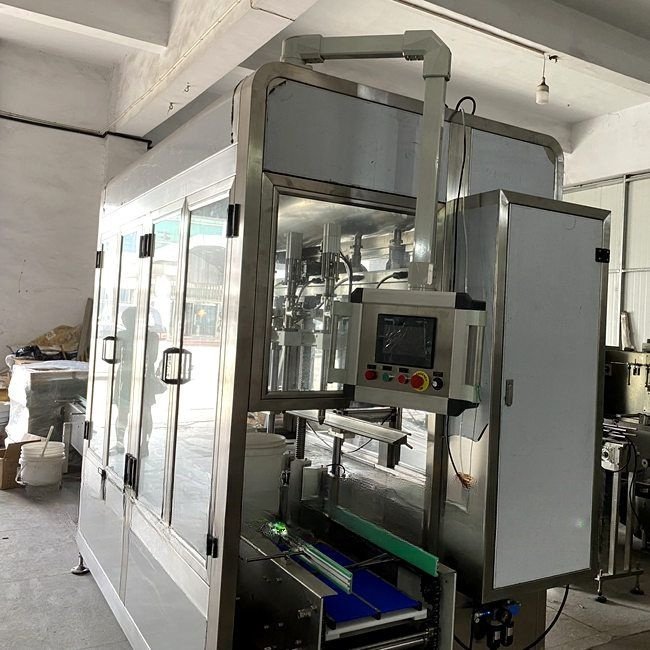

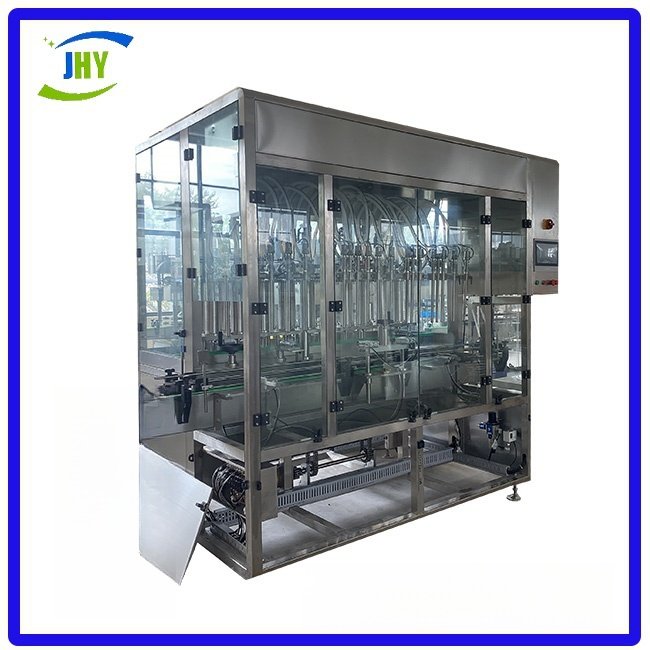

The sunflower oil filling machine is constructed of SUS304 stainless steel and is suitable for a variety of bottle sizes (customization is supported). It features an electrical control unit for simple, convenient, and fast operation. This sunflower oil filling line utilizes a plunger pump. This fully automatic oil filling machine can fill edible oil, coconut oil, olive oil, and lubricating oil. It utilizes a servo motor for enhanced precision.
High-Precision Filling:
Sunflower oil is a common oil product on the market. For cost control and consumer protection, accurate filling accuracy is of great concern to both manufacturers and consumers.
Through continuous technological innovation and refinement, we have developed a high-precision metering system to ensure the minimum tolerance for the fill volume per bottle or barrel (generally within ±0.1%-±0.3%).
The sunflower oil filling machine also accommodates a variety of bottle sizes and accurately fills containers of various sizes (e.g., 200ml, 500ml, 1L, 5L, 10L, 20L, etc.).
Our sunflower oil filling machines also boast fast filling speeds and high efficiency:

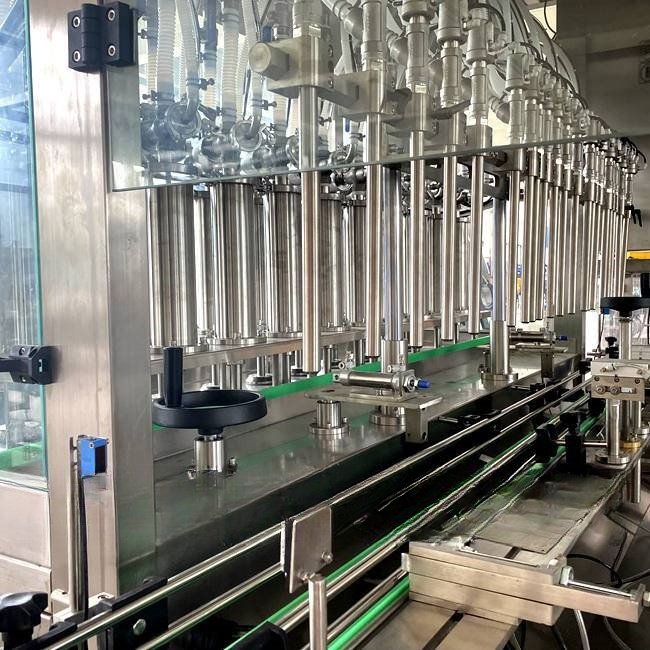

Our sunflower oil filling machines are typically equipped with multiple filling heads (e.g., 6, 8, 12, 16, or more) to meet varying production requirements and significantly improve production efficiency.

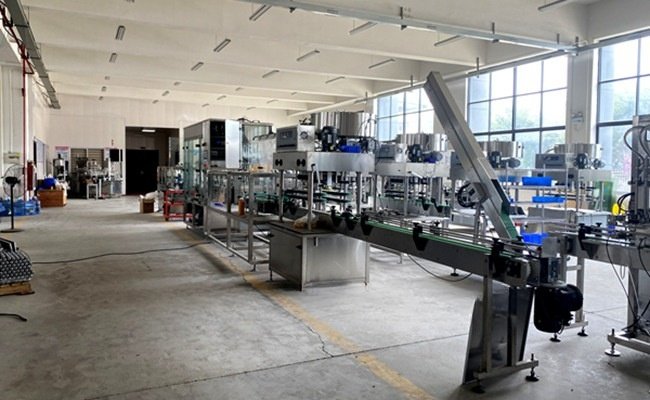

They can be equipped with automatic bottle unscramblers, capping machines, labelers, inkjet printers, cartoners, and other equipment to form a complete automated production line, reducing manual intervention and increasing overall production capacity (reaching thousands or even tens of thousands of bottles per hour).
| Filling heads | 2 4 8 12 16 20 |
| Filling accuracy | ±0.5-1％ |
| Air pressure | 0.4-0.6Mpa |
| Filling speed | 300-4200 |

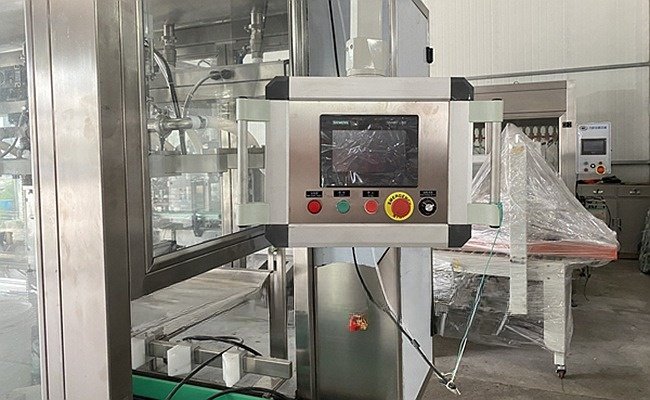

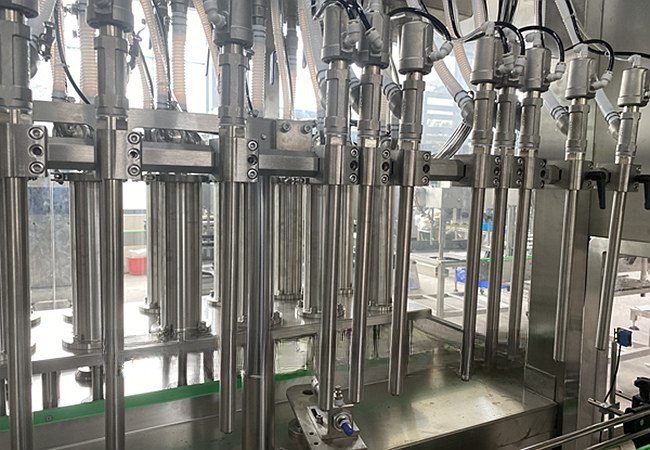

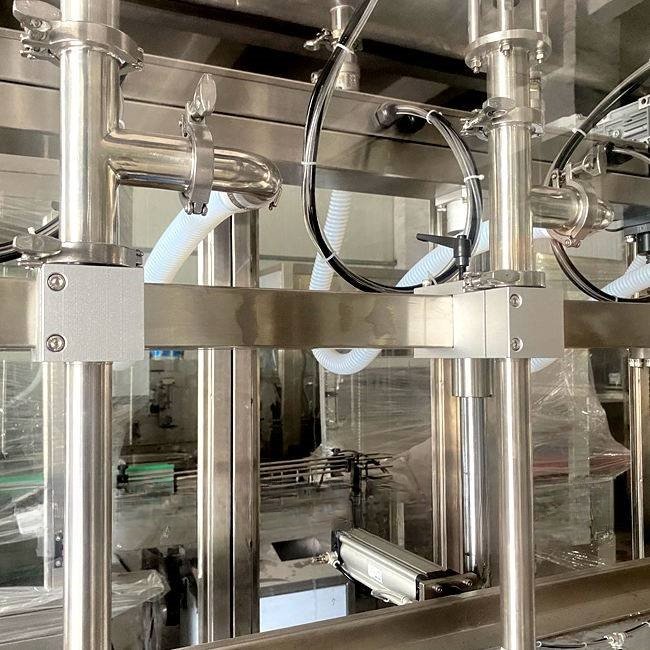

No bottles, no filling. The filling heads are specially designed to prevent dripping, stringing, and foaming. The submersible filling heads rise and fall with the liquid level. PLC control: The core control system is stable and reliable. The human-machine interface (HMI): The color touch screen offers intuitive operation and allows for setting and storing various filling parameters (volume, speed, etc.).
